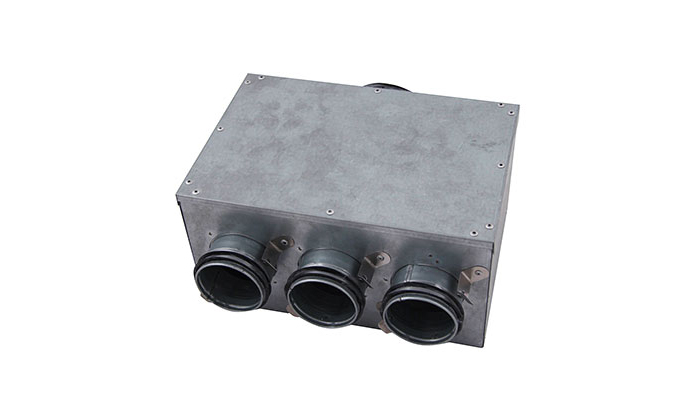

MHUManifold
The manifold can be used for both supply and exhaust air. It is available in several types and dimensions. All types have Ø 63 or Ø 80 mm studs with Lindab Safe sealings for connections of SR spiral-seamed ducts or semiflexible ducts LFPE. Use the transition piece RCFU, with integrated Smart Lock function, to connect the LFPE 76/90-dimension to InDomo manifolds and plenum boxes. The manifolds are designed for floor installation but can be used everywhere, also in the ceiling for example.
The smart lock function allows you to fasten LFPE effortlessly to the Safe studs.
Two turnable anchor plates, placed on the bottom of the manifold, can be used for fixation.
Fulfills air tightness class D.
| Characteristic | Value |
|---|---|
| Size | 80 - 200 |
| Length/ angle | 63 - 80 |
| Variety | GALV |
| Type | 10, 12, 14, 16, 2, 3, 4, 4-4, 6, 6-4, 6L, 6R, 8 |
