Smoke Extract Fans
Life safety ventilation solutions
Reliable air movement when it matters most
Fans are an integral part of a ventilation system, ensuring flow of air through a building. Experts at Lindab work with respected fan manufacturers to select the right fan for each project, optimising comfort, temperature, smell, noise levels, health, and performance according to the needs of the intended users of the building.
High temperature air movement units are specialist fans which work to provide effective ventilation during normal usage conditions however they are also designed to remove smoke, heat, and combustion gases during a fire situation.
Fire Safety
The purpose of smoke extract fans is to protect life and property by keeping escape routes clear of smoke and gasses providing extra time for building evacuation and emergency service response.
Lindab offer a range of smoke extract fans which can operate up to temperatures of 400 °C for 120 minutes in a fire emergency. They are available in multiple configurations to suit different mounting and installation requirements, and they are tested and certified to EN 12101-3:2015 with Applus fire safety certification.

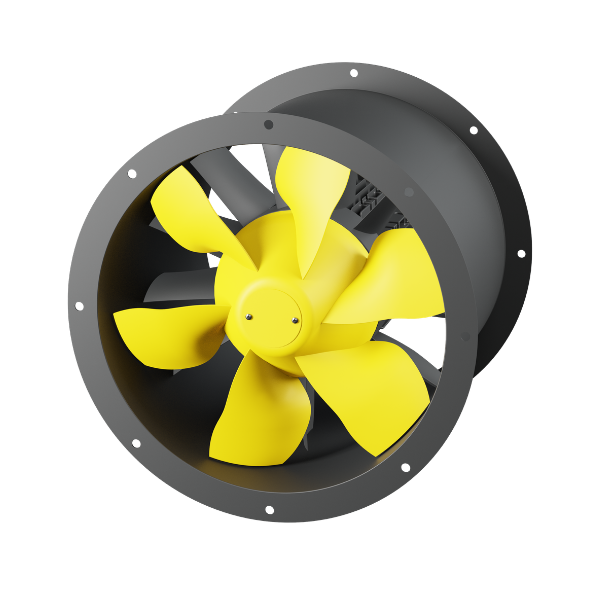

AL - Efficient high-volume Axialine fan
- Max. airflow: 119.600 m³/h
- Sizes: 315 – 1250mm
- Fire certified: 400°C for 120 minutes and 60°C in continuous operation
- Aerodynamically optimised 3D impeller and stator blades
- Cone hub for optimal flow at the impeller
- Lightweight, robust steel construction
- Long-lasting powder coated housing

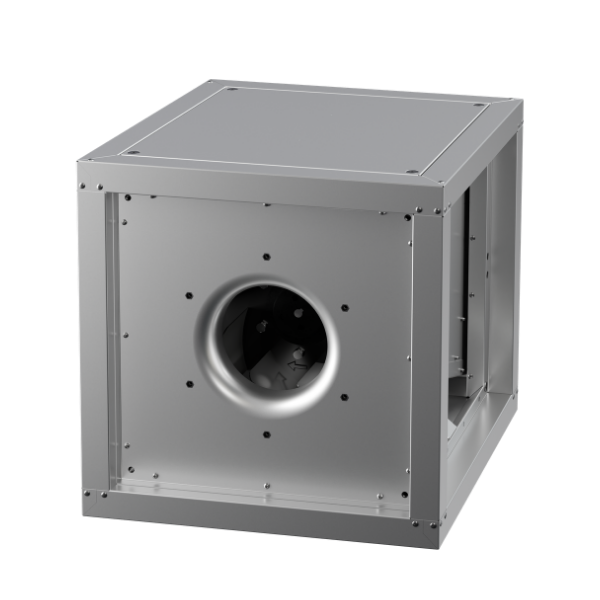

MCPT - Insulated centrifugal box fan
- Max. airflow: 22,600 M³/h
- Sizes: 225 – 800mm
- Fire certified: 400°C for 120 minutes and 120°C in continuous operation
- Backward curved centrifugal impeller with screw tight hub and taper lock shaft-hub connection
- Removable side walls for variable design of the discharge direction
- Integrated drain in casing base
- Double-wall insulated steel housing

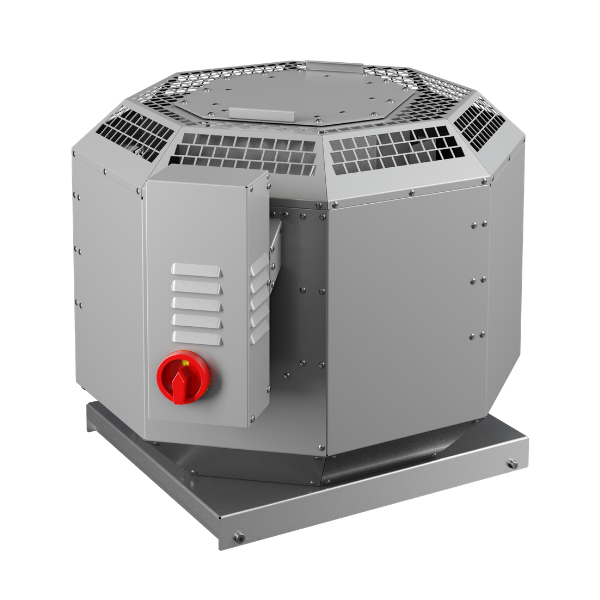

DVNI - Vertical discharge roof extract fan
- Max. airflow: 18.500 m³/h
- Sizes: 225 – 710mm
- Fire certified: 400°C for 120 minutes, 200°C in continuous operation, up to 120 °C for kitchen exhaust
- VDI 2052 compliant motor outside the airflow
- Backward curved centrifugal impeller
- Integrated grease drain for easy maintenance
- Weather-resistant aluminium housing

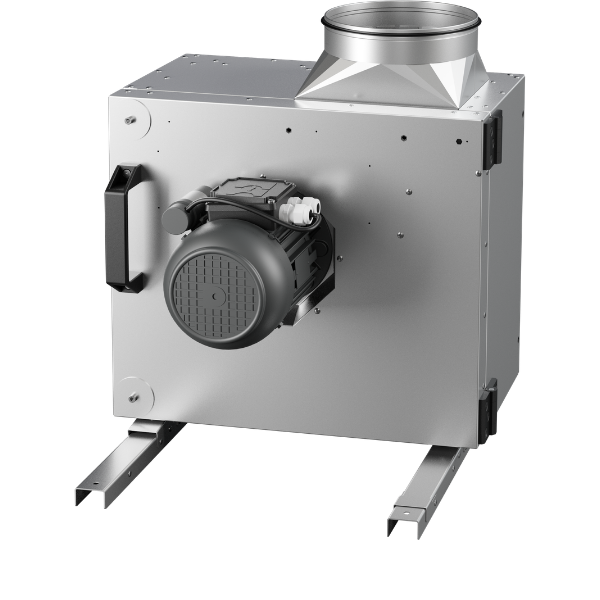

MPS - Perpendicular exhaust fan
- Max. airflow: 11.800 m³/h
- Sizes: 225 – 560mm
- Fire certified: 400°C for 120 minutes, 200°C in continuous operation, up to 120 °C for kitchen exhaust
- VDI 2052 compliant motor outside the airflow
- Backward curved centrifugal impeller with screw tight hub and taper lock shaft-hub connection
- Integrated drain in casing base
- Double-wall insulated steel housing

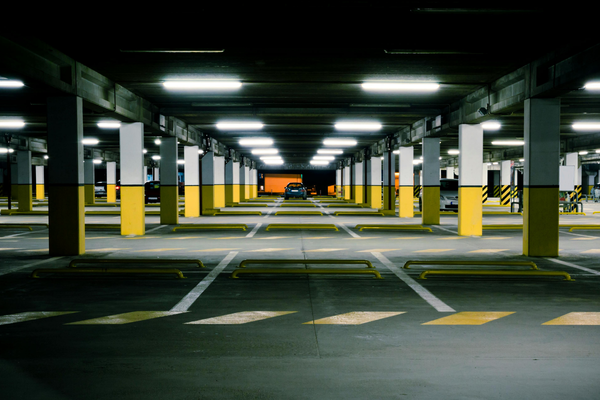

Car Park Jet Fans
Efficient smoke and pollution control
Car Park Jet Fans
Car park jet fan systems provide a ventilation solution designed to control fumes during daily use and rapidly clear smoke in a fire emergency.
Compact, energy‑efficient and easy to install, jet fans now available from Lindab are designed using the latest techniques to meet local regulations, optimise air quality and fire safety performance, and reduce total life‑cycle costs.

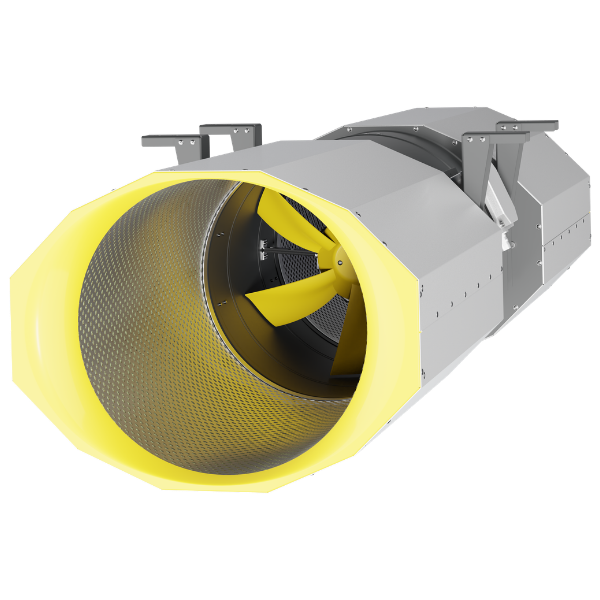

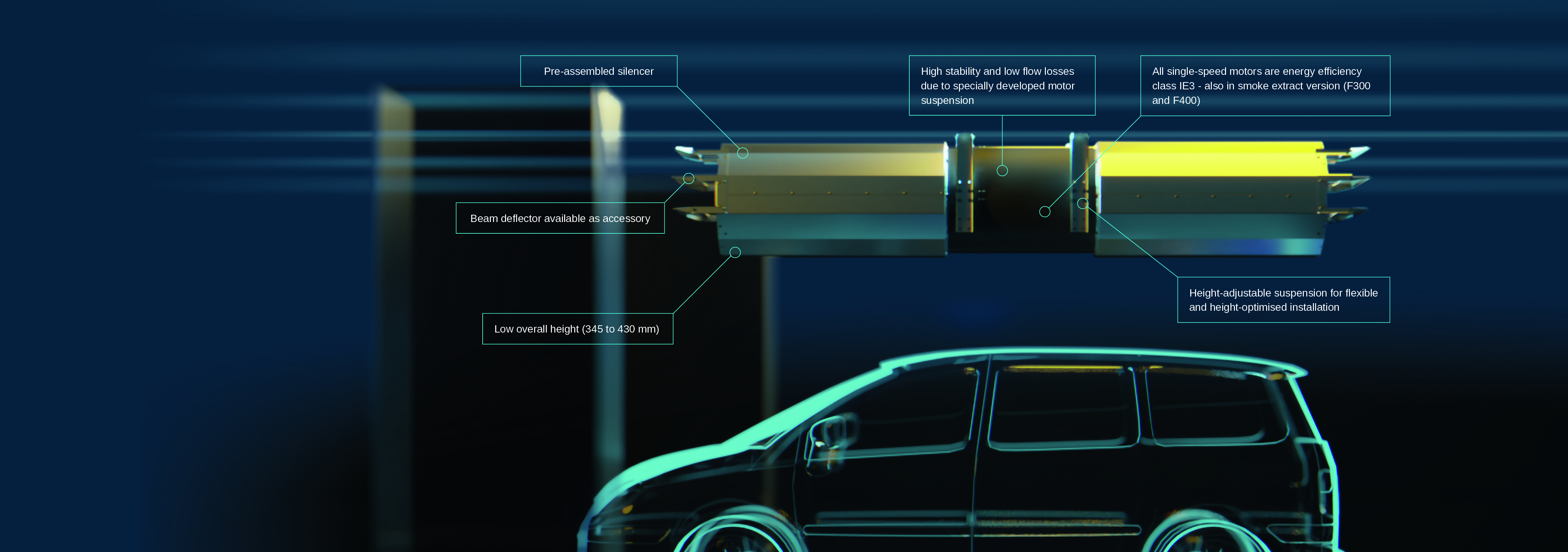

CPA - Compact car park smoke extract jet fan
- Fire certified: 400°C for 120 minutes
- Low overall height: 345 - 430mm
- Height adjustable suspension for flexible installation
- Energy efficient class IE3
- High stability and low flow loss due to specially developed motor suspension
- Pre-assembled lightweight aluminium silencer
- Aerodynamically optimised robust steel impeller
